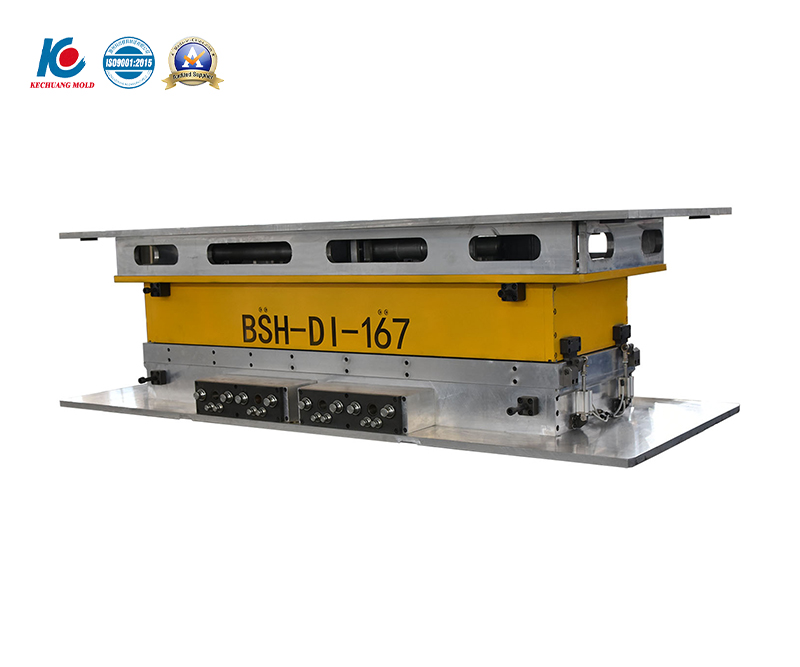

The plastics sucking forming mould for innerliner of refrigerator cabinet,which is thermoforming mould and punch forming.
The mould has sliding block mechanism,core-pulling mechanism and other moving parts.
The heated ABS or HIPS plates are absorbed on the forming mould in the form of vacuum pumping to obtain the inner liner of refrigerator cabinet.
The mould structure is novel,the forming efficiency is high and the rejection rate is low.
Description
The plastics sucking forming mould for innerliner of refrigerator cabinet,which is thermoforming mould and punch forming. The mould has sliding block mechanism,core-pulling mechanism and other moving parts.The heated ABS or HIPS plates are absorbed on the forming mould in the form of vacuum pumping to obtain the inner liner of refrigerator cabinet.The mould structure is novel,the forming efficiency is high and the rejection rate is low.
Technical Parameters
| Material of Mold Core | Material of Supporting Frames | Water Pipe in Mould | Pneumatic Motor Component |
| Cast Aluminium 401,C5 | Q235,45 | Red Copper or Stainless Steel | Airtac,Taiwan;SMC,Japan;Festo,Germany |
Description
The plastics sucking forming mould for innerliner of refrigerator cabinet,which is thermoforming mould and punch forming. The mould has sliding block mechanism,core-pulling mechanism and other moving parts.The heated ABS or HIPS plates are absorbed on the forming mould in the form of vacuum pumping to obtain the inner liner of refrigerator cabinet.The mould structure is novel,the forming efficiency is high and the rejection rate is low.
Technical Parameters
| Material of Mold Core | Material of Supporting Frames | Water Pipe in Mould | Pneumatic Motor Component |
| Cast Aluminium 401,C5 | Q235,45 | Red Copper or Stainless Steel | Airtac,Taiwan;SMC,Japan;Festo,Germany |
